Face ID is industry first embedded facial recognition system with leading “Dual Sensor™” Facial Recognition Algorithm, which designed for application like physical access control and time attendance, identity management and so on.
Time attendance FK605
FK605 is an embedded facial recognition system with leading “Dual Sensor™” Facial Recognition Algorithm, which applied for time attendance application. Its classic slope design is good for commercial market like Enterprise, Bank, building automation and so on.
Features:
Embedded facial recognition system:
• Adopt US advanced DSP technology keeps processing and matching right on the device
• Standalone application as time attendance, Identity management
Accurate and Fast Identification:
• Industrial Leading “Dual Sensor™” Facial Recognition Algorithm, FAR<0.0001%
• 1:Many up to 1400 users less than 1 second
Large user and log capacity:
• User capacity from 500 to 1400
• Over 150,000 logs
Reliable performance under different environments
• Different source-light Technology
• The system can work in different light condition even in the dark
• Over Over 20 months released in the market
Flexible I/O interfaces
• Internet Protocol based enables LAN or Network deployment
• USB Host for User data upload or download via USB flash driver
User friendly design:
• 3.5 inch color screen for face positioning
• contactless authentication for the ultimate in hygienic
• voice prompt
Other Functionalities:
• Multi authentication methods that able to work with Facial, Pin+Facial
• Low power consumption,12Watts in operation, less than 5Watts in resting mode
Technical Specifications
FK605 | |
Processor | TI DM 6446 CPU 594MHz |
User Capacity | 500 Users |
Record Capacity | 150,000 Records |
Recognition Algorithm | Dual Sensor™ V2.0 |
Sensor | Specialized double sensor |
Verification Method | Face, Pin and Face |
Verification Speed | Less than 1 Second(500 Users) |
Keyboard | 4*4 Touch Keypad |
LCD | 3.5 inch TFT Color Screen 65,000 Bright Color 320*240 Resolution |
Communication Method |
Standard TCP/IP、 USB Host |
Power | 12V DC, Working Current 500mA |
Environment Light | 0-5000Lux |
Working Distance | 30-80cm |
Working Temperature | 0℃-40℃ |
Working Humidity | 20% - 80% |
Size | 200* 95* 115 mm |
Weight | 505g |
Installation Method | Wall Mounting |
Remove Alarm | - |
Certification | CE FCC Class A ROHS |

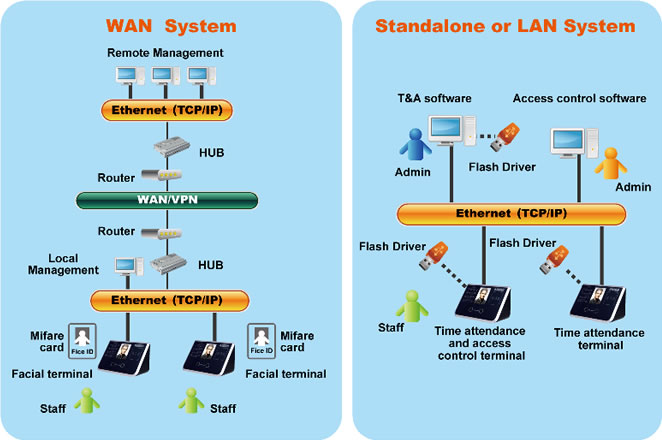

System Configuration
